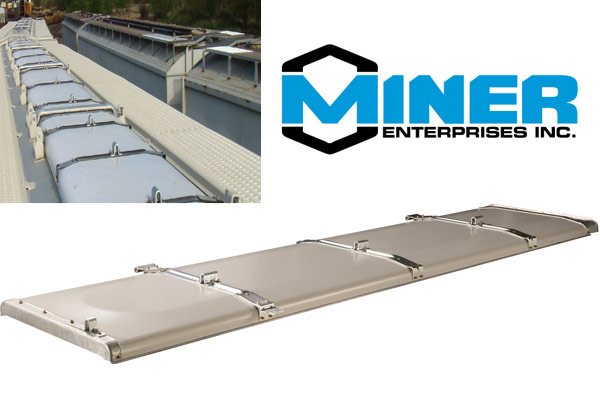

Miner Enterprises / DuraShield™ Trough Hatch Cover

Miner's DuraShield™ Trough Hatch Covers are designed and built to withstand the harshest elements the railroad environment can throw at them.

The longtime leader in hopper car outlet gate design and manufacture, Miner now covers the car from top to bottom. DuraShield hatch covers are available in both round and square end-cover configurations to accommodate most 24" trough designs and are available in all standard lengths. Each DuraShield is constructed of a high performance aluminum composite material (aluminum skin top and bottom and a solid polyethylene core) over a rigid frame. The result is a lightweight profile cover system that is more durable than fiberglass and lighter weight than all-aluminum hatch covers.

• Patent Pending Boxed Frame Design provides strength for greater durability and stiffness
• Full-length 3/16 inch Aluminum Angle reinforces cover edge, protecting it from damage during opening, and resists end-to-end distortion for a consistent seal
• High-strength steel cross members form the end of the frame and resist damage from the batten bars
• Permanently flexible adhesive bonds cross members to the cover, filling the joints before huck fasteners are applied to prevent leaks
• Support straps extend the full depth of the profile to help prevent bowing of the vertical legs of the cover while dispersing the stress from the hinges, increasing the life of the cover and minimizing leakage
• Hinges fasten directly to the support straps, minimizing leakage and cracking
• Optional bumper adapts to varying car designs to allow cover to lay flat when open.
• Gaskets stay in place at all temperature extremes and are three times stronger than the AAR specification requires

Miner DuraShield hatch covers offer maximum commodity protection by ensuring a consistent, reliable seal in real-world environments. Built for long service life and minimum maintenance.

https://www.minerent.com/Hatch_Covers-Overview.php
